TOP & Finishing Touches
Top, Seats & Gauges

Click on photos for FULL SIZE

Bought a used "T" Top and redesigned the supports to accommodate my boat.

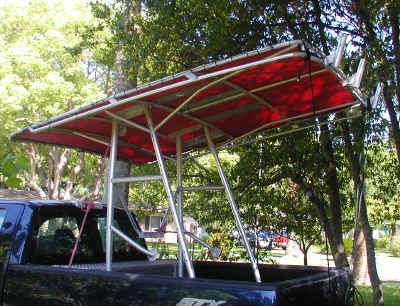

I tied it in to bring it home!

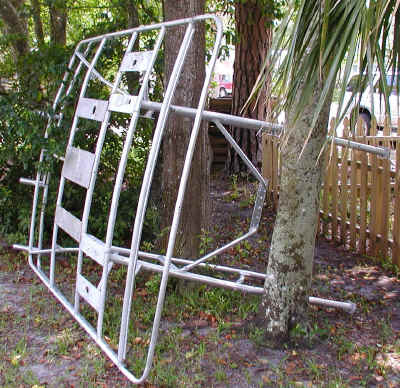

T-Top before modifications
Removed the RED TOP
T-TOP before modifications           NOTE: Position of support poles
Top installed
NOTE the wider stance for the supports and they are now welded to the outer plates.
NOTE forward COOLER seat reinstalled

I used a small tarp to block the sun while I installed the top.
TOP IS BOLTED DOWN to the gunwales and the center console!

Side View
Side view
NOTE Seat back shows for the Swing Back COOLER Seat
Spare tire is mounted, under the bow.

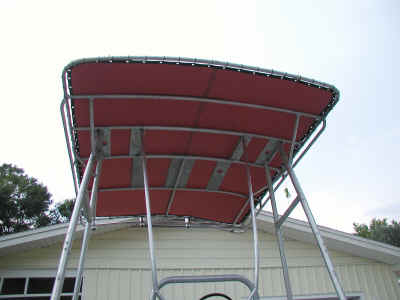

T-top_cover_on
RED TOP Reinstalled
T-top_cover_on_1
RED TOP Reinstalled

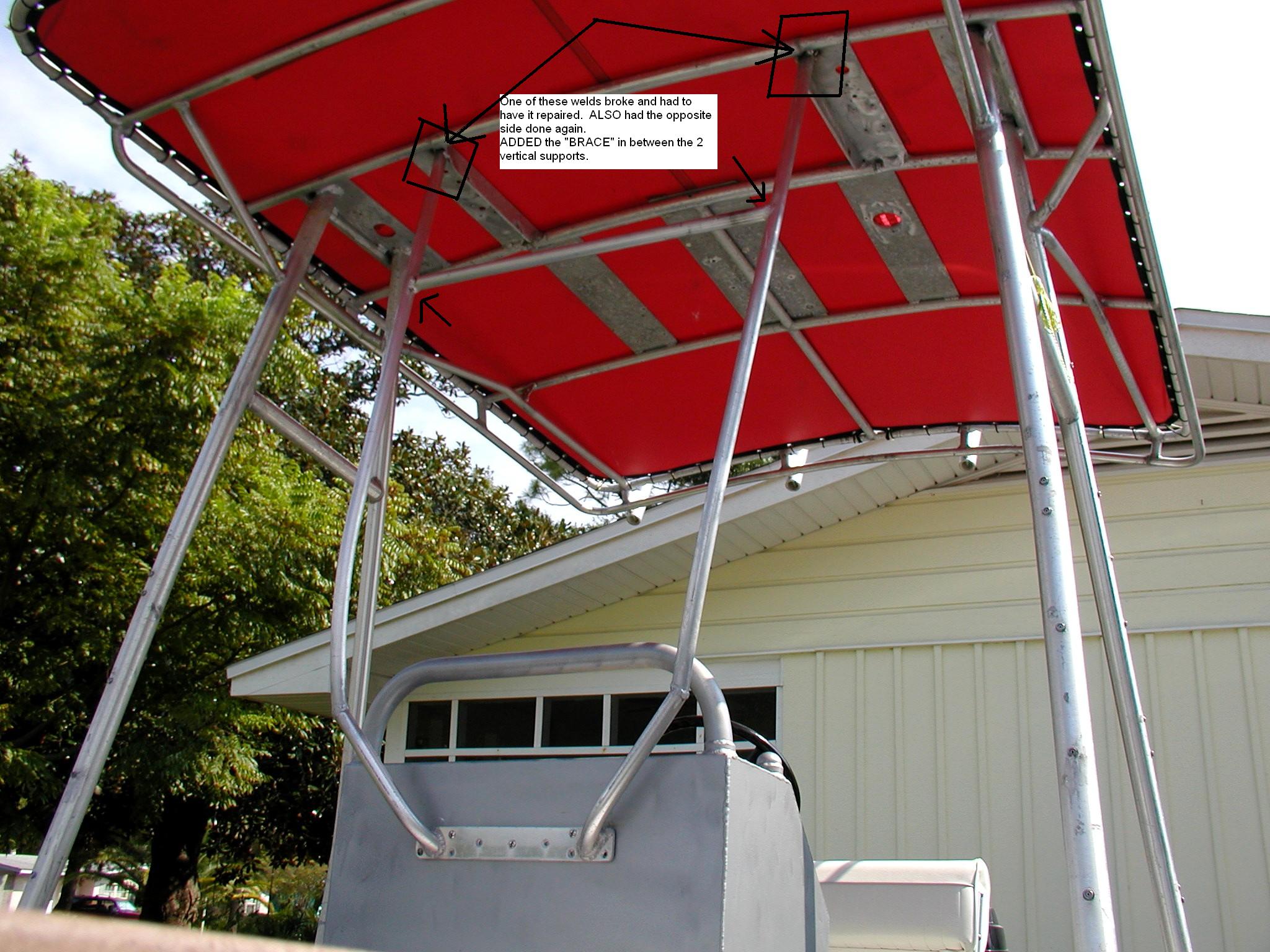

TOP after weld REPAIRS completed

VERTICAL Support welded at top BROKE
Click on photo ABOVE to see repairs
SWING BACK helm seat W/ cooler base
SWING BACK SEAT W/ cooler base, installed
SWING BACK helm seat W/ cooler base
SWING BACK SEAT W/ cooler base, installed
FLIPPED the opposite direction
GAUGES installed
GAUGES installed; fuel and electrical.
I had to replace the fuel tank sending unit as well.
Electrical shows battery condition and charging system
(this is a NEW installation as the boat did not have one before)
